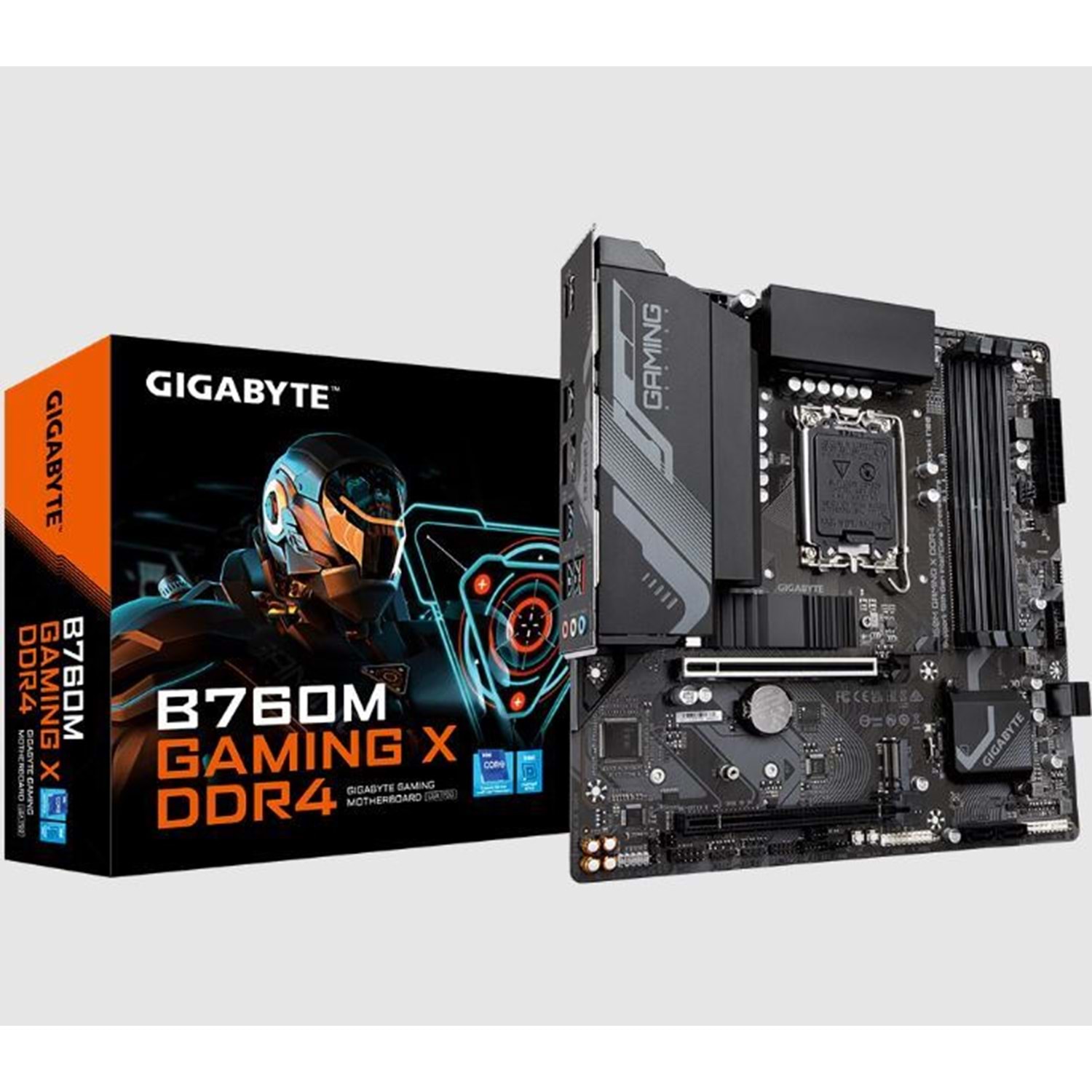

GIGABYTE B760M GAMING X DDR4 HDMI DP PCIE 4.0 1700p mATX

Teknik Bilgiler

İşlemci Soket Tipi	1700
Chip Set	Intel B660 Express
Ram Slot Sayısı	4 Adet
Max Ram Desteği	64GB
RAM Tipi	DDR4
Ram Frekans Hızı	2400 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,3800 MHz,4800 MHz,3866 MHz,4000 MHz,4933 MHz,5000 MHz,2666 MHz,4133 MHz,5133 MHz,4266 MHz,2133 MHz,3733 MHz,2933 MHz,3000 MHz,3200 MHz,3333 MHz,3400 MHz,3466 MHz,5333 MHz,3600 MHz,3666 MHz,4300 MHz
İşlemci Desteği	Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5
Anakart Boyutu	Micro ATX
USB 3.2	4 Adet
USB 3.1	Yok
USB 3.0	Yok
USB 2.0	4 Adet
eSata	Yok
Bluetooth	Yok
PCI Express 4.0 x16	1 Adet
PCI Express 3.0 x16	1 Adet
PCI Express 2.0 x16	Yok
PCI Express x16	Yok
PCI Express x1	2 Adet
PCI Slot	Yok
M.2 Slotu	1 Adet
Sata 6Gb/s	2 Adet
D-Sub	Yok
DVI	Yok
HDMI	Var
DP (Display Port)	Var
Lan Hızı	2.5 Gbit/ 1 Gbit/100 Mbit
Lan Çıkış Sayısı	1 Adet
Wireless Bağlantı	Yok
Ses Chip Set	Realtek Audio CODEC
Ses Kanal Sayısı	7.1 Kanal
Görüş Açısı (Yatay / Dikey)	160/140
Satış Garanti Süresi (ay)	24
EAN	4719331851255

Detaylı Bilgiler

Kategori	Özellik
CPU	LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Please refer "CPU Support List")
Chipset	Intel® B760 Express Chipset
Memory	DDR4 5333–2133 MT/s (O.C.) 4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) Dual channel, ECC (non-ECC mode) & non-ECC support *XMP support (CPU/memory config may affect compatibility; see "Memory Support List")**
Onboard Graphics	Intel® HD Graphics 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) Support for up to 3 displays
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel *S/PDIF Out (configurable via software)**
LAN	Realtek® 2.5GbE LAN (2.5G/1G/100M)
Expansion Slots	CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 1 x PCIe x16 (PCIe3.0 x4)
Storage Interface	CPU: 1 x M.2 (2280 PCIe4.0 x4/x2) (M2A_CPU) Chipset: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) (M2P_SB) 4 x SATA6Gb/s, RAID 0/1/5/10 support
USB	1 x USB Type-C 3.2 Gen2 (internal) 5 x USB3.2 Gen1 (3 back, 2 internal) 1 x USB2.0/1.1 (back) 8 x USB2.0/1.1 (4 back, 4 internal)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin ATX12V CPU fan header, 3 system fan headers 2 x addressable LED, 2 x RGB LED headers 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/USB headers, TPM header, serial header 2 x Thunderbolt™ add-in connectors, Q-Flash Plus button, reset jumper, Clear CMOS 1 x USB Type-C header (USB3.2 Gen2), 1 x USB3.2 Gen1 header, 2 x USB2.0/1.1 headers
Back Panel Connectors	3 x USB3.2 Gen1, 5 x USB2.0/1.1 1 x HDMI 2.0, 1 x DisplayPort, 1 x RJ-45 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	*Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (depends on fan)**
BIOS	1 x 256 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0
Unique Features	*GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (features may vary)**
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX; 24.4cm x 24.4cm
