FEATURES

• ATX 3.1 and PCIe Gen 5.1 ready
• 80 PLUS Gold certified
• Main Japanese capacitors
• 120mm Silent Hydraulic Bearing (HYB) Fan
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Compact design
• 5 years warranty (Adjusted according to different regions)

ATX 3.1 and
PCIe Gen 5.1 Ready

Designed to meet the demands of next-gen systems, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 300W for PCIe Gen 5 graphics cards, such as the GeForce RTX™ 50 Series and beyond.

80 PLUS
GOLD CERTIFIED

Achieving 90% efficiency at a 50% load, this 80 PLUS Gold certified PSU reduces power loss, minimizes heat generation, and lowers fan noise, ensuring both performance and energy savings.

The life of the main capacitor is over 20 years (Environment 25°C)

HIGH QUALITY
JAPANESE CAPACITORS

The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.

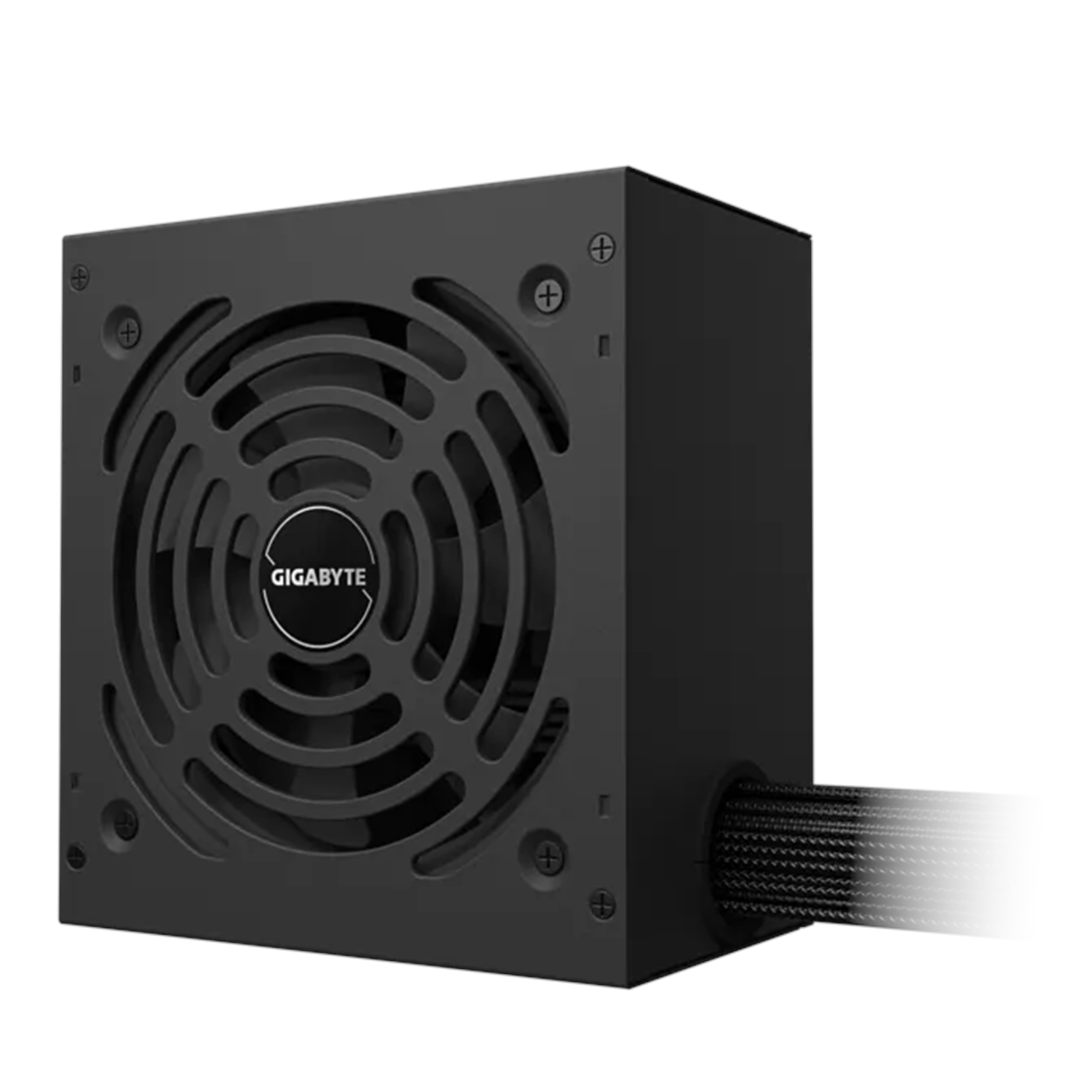

FAN

ACOUSTIC

120MM SILENT HYDRAULIC
BEARING (HYB) FAN

The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.

SINGLE +12V RAIL

The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.

COMPREHENSIVE PROTECTION

Equipped with multiple protection features, this PSU ensures the stable operation of your system, backed by safety certifications from various countries for added peace of mind.

COMPACT DESIGN

Thanks to advanced thermal solutions and premium materials, the PSU features a compact size that fits easily into most chassis, maximizing both power and space efficiency.

SOFT-TEXTURED EMBOSSED CABLES

The soft-textured, embossed cables reduce friction, preventing wear and tear while keeping your build tidy. The unique patterns add an aesthetic touch and enhance durability, ensuring a clean and long-lasting cable experience.

* All the images in this page are for illustration only.

Model

GP-P650G PG5?

Tip

Intel Form Factor ATX 12V v3.1

PFC

Active PFC(>0.9 typical)

Giriş gerilimi

100-240 Vac

Giriş akımı

10-6A

Giriş Frekansı

60-50 Hz

Çıkış kapasitesi

650W

Ebatlar

150 x 140 x 86 mm

Fan türü

120mm HYB Fan

80 PLUS

Gold

Verim

90% at typical load

MTBF

>100,000 hours

Koruma

OVP/OPP/SCP/UVP/OCP/OTP

Güç Kontrol Sinyali

100-150ms

Bekleme süresi

>17ms

Kablo türü

Embossed, All black

Konektörler

ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 1 : 600mm + 150mm*1
PCI-e 16 Pin x 1: 500mm*1
PCI-e 6+2 Pin x 2 : 500mm+150mm*1
SATA x 6 : 420mm+150mm+150mm*2
4 Pin Peripheral x 3 : 420mm+150mm+150mm*1
